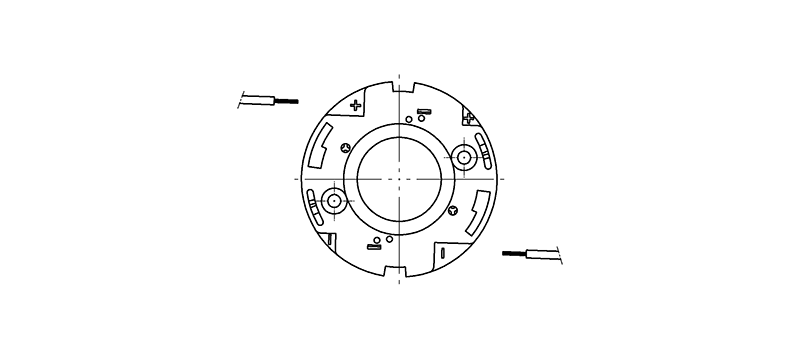

COB Connector Slim Ø50 LED array 23.85x23.85

品番: 47.360.2050-0

EAN: -

0.35 - 0.5 mm², AWG 22 - 20 / max. 1.05 mm
0.35 - 0.5 mm², AWG 22 - 20 / max. 1.05 mm
8.0 + 1 mm

製品情報 "COB Connector Slim Ø50 LED array 23.85x23.85"

With integrated COB holder and interface for reflectors 47.950
Easy pre-assembly of LED
Screw mounting: for screws M3 and locking washer
Max. torque for screw fixing 0.5 Nm*
Strip length: 8+1 mm
Polarity symbols of connector and LED must be observed in assembly
Specification of LED manufacturer must be observed
In a series connection of LED modules, the air gap and creepage distances has to be sized that each module covers the total voltage of the series connection
*Please note the max torque of the COB manufacturer

Certification Mark:	VDE CERTIFICATE OF CONFORMITY WITH FACTORY SURVEILLANCE EN 60838-1
Conductor cross-section:	Solid wires: 0.35 - 0.5 mm², AWG 22 - 20 / Stranded, tinned wires: 0.35 - 0.5 mm², AWG 22 - 20 / max. 1.05 mm
Country of origin:	DE
Diameter:	Ø 50 mm
LED?:	intended for the use of COBs
LED Array:	23.85 x 23.85 mm
Material:	Housing: PBTContacts: CuSn
Note warranty conditions:	*Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid.
Operating temperature:	max. 110°C
Packaging quantity:	420
Pre-centering for COB:	Yes
Prefixation:	Clamping tab
Producttype:	Slim Spotlight Connectors and Accessories
Rating:	3A / 150 VDC
Series:	COB Slim Connectors - 47.360
Solid wires:	0.35 - 0.5 mm², AWG 22 - 20
Stranded, tinned wires:	0.35 - 0.5 mm², AWG 22 - 20 / max. 1.05 mm
Type of packaging:	Bag
UL:	yes
Weight:	5,3 g
mounting method 1:	Screw mount
mounting method 2:	P2F fixing with 28.902.-102
mounting method 3:	Tip for fastening by screws: The screw chamber of the 47.360 series has a height of 1.9 mm. The screw head must not be higher, otherwise the reflector will fit poorly or not at all.
old article number:	47.360.2050.50
