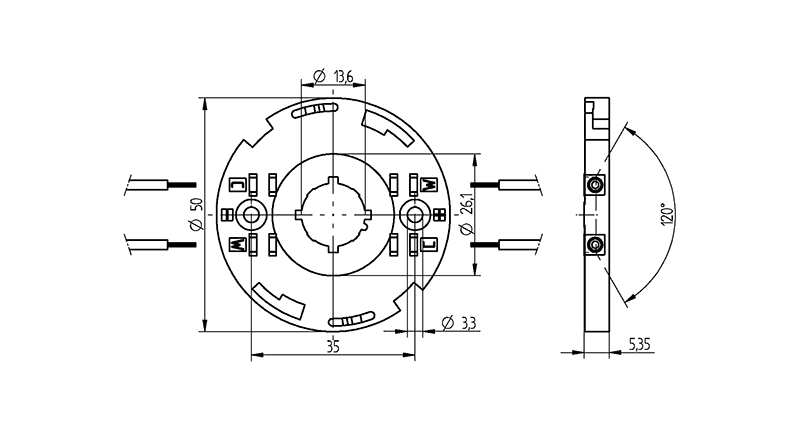

COB Connector Ø50 LED array 15.85x15.85

品番: 47.319.2361-0

EAN: -

0,75 mm²
0,75 mm²

製品情報 "COB Connector Ø50 LED array 15.85x15.85"

With integrated reflector interface
Screw mounting: for screws M3 and locking washer
Max. torque for screw fixing 0.5 Nm*
Strip length: 7-1 mm
Polarity of LED must be observed
Specifications of LED manufacturer must be observed
cURus: For limited applications
VDE-Reg. No. E289
*Please note the max torque of the COB manufacturer

Certification Mark:	VDE CERTIFICATE OF CONFORMITY WITH FACTORY SURVEILLANCE EN 60838-1
Conductor cross-section:	0.75 mm²
Diameter:	Ø 50 mm
LED?:	intended for the use of COBs
LED Array:	15.85 x 15.85 mm
Material:	Housing: PBTContacts: CuSn
Note warranty conditions:	*Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid.
Operating temperature:	max. 130°C
Packaging quantity:	504
Pre-centering for COB:	No
Prefixation:	Viewing holder
Producttype:	Spotlight Connectors and Accessories
Rating:	3A / 150 VDC
Series:	COB Connectors - 47.319
UL:	yes
cURus file no.:	E-345385
mounting method 1:	Screw mount
mounting method 2:	P2F fixing with 28.902.-102
old article number:	47.319.2361.50

利用可能なダウンロード

Available CAD Downloads

3D-CAD_(STEP,_Parasolid,_IGES,_3D-PDF)01T-A8F-01

認証

品番	スターテス	説明	書類
47.319.2361-0			EAC_Genehmigung_liegt_vor_--EAC_approval_at_hand_-5665445
47.319.2361-0			ÜG_Überwachungsgutachten_--Certificate_of_Conformity_-5852779
47.319.2361-0			cURus_(USA_and_Canada)--3437952
