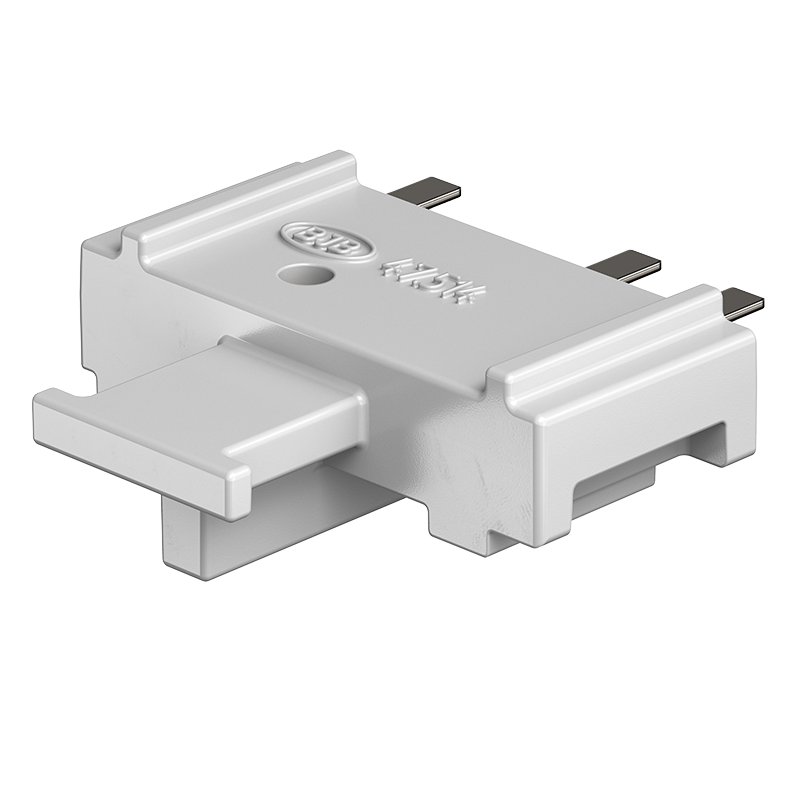

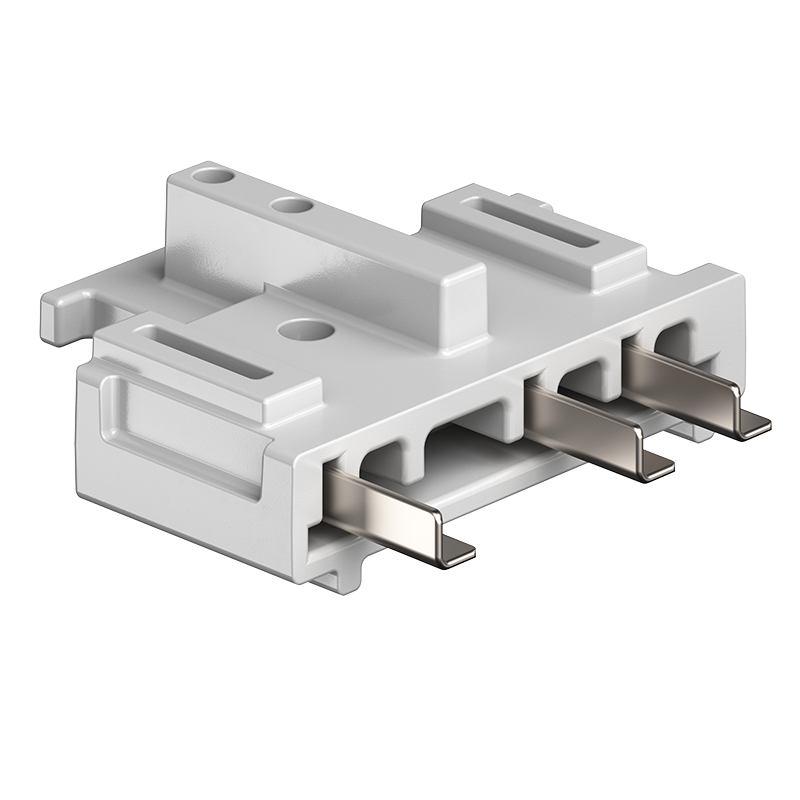

Phase Selection Plug
品番:
47.514.U301-1
製品情報 "Phase Selection Plug"

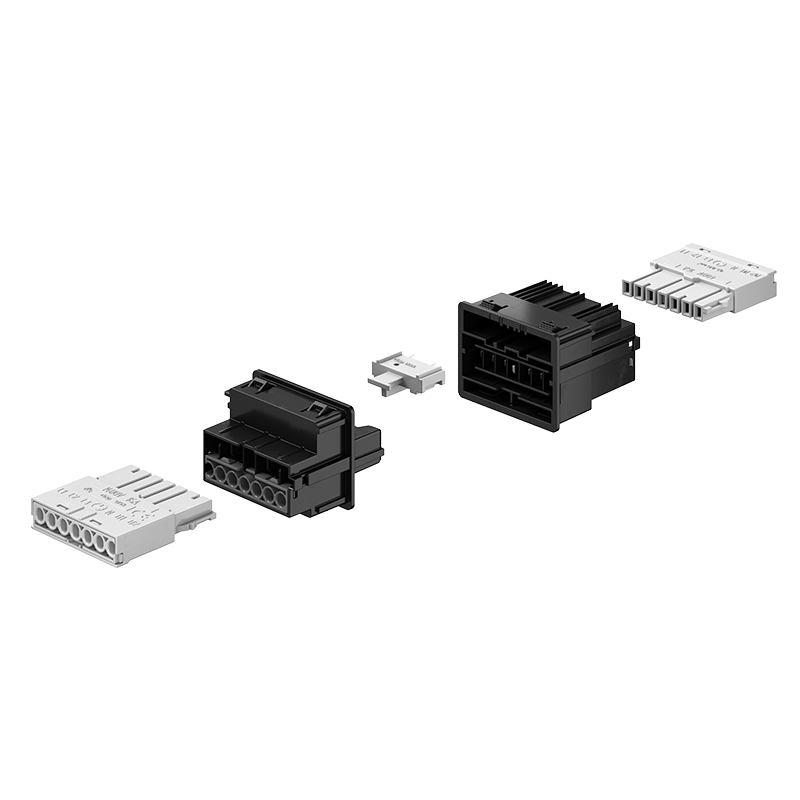

Phase Selection Plug standard connector system for trunking systems
| Certification Mark: | VDE MARKS APPROVAL for Connector (COC) 47.514 |
|---|---|
| Certification Status: | active |
| Height: | 8,25 |
| IP-Protection type: | IP 20 |
| Length: | 24,1 |
| Material: | Housing: PA 6.6 |
| Max. operating current : | 2 A |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | Surroundings temperature from -40°C up to +125°C |
| Packaging quantity: | 300 |
| Producttype: | Connector System for trunking systems |
| Resistance: | Glow wire resistance: 850°C |
| Seal: | no |
| Series: | Connector System |
| Weight: | 1,65 g |
| Width: | 23 |
| mounting method: | loose, push-in |
| old article number: | 47.514.U301.81 |
