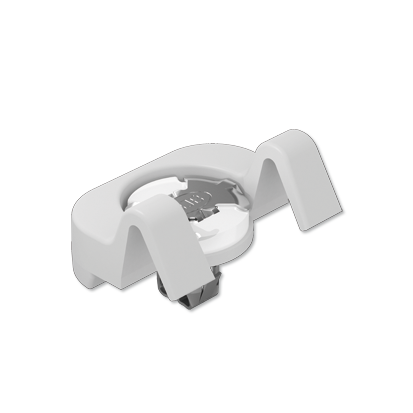

OptiLine Slim 20 Optic Holder P2F 1.6 - white
品番:
31.930.E342-0
EAN:
-
製品情報 "OptiLine Slim 20 Optic Holder P2F 1.6 - white"
For linear optics 31.930.E44x and 35.301.10xx
Easy and quick assembly with standardised P2F (Push to Fix) 28.901
For PCB thickness of 1.6 mm

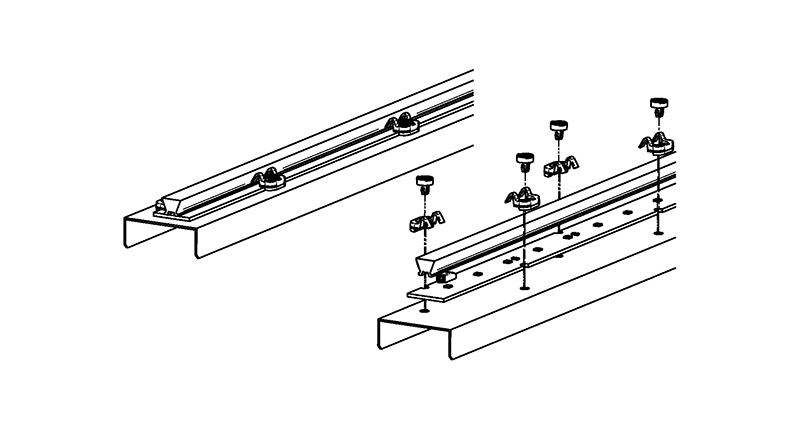

As optic and board holder the easy, fast and secure optics mounting by clip in fixing from above
Universal application - no defined hole spacing
Integration of thr optics without disturbing the light image
Easy and quick assembly with standardised P2F (Push to Fix) 28.901
For PCB thickness of 1.6 mm
As optic and board holder the easy, fast and secure optics mounting by clip in fixing from above
Universal application - no defined hole spacing
Integration of thr optics without disturbing the light image
| Color: | white |
|---|---|
| Material: | PC |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 700 |
| Producttype: | OptiLine Slim - 20 / 24 mm LED-System |
| Series: | OptiLine Slim - 20 / 24 mm LED-System |
| Weight: | 8 g |
| mounting method 1: | Snap in fixing with P2F |
| old article number: | 31.930.-342.50 |
