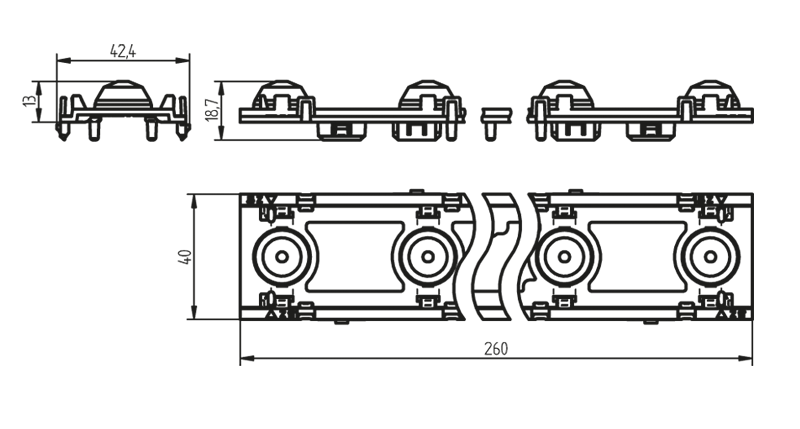

OptiLine Louvre Medium 1 ft
-
-
Medium
製品情報 "OptiLine Louvre Medium 1 ft"
1-Click Louvre optics
1R linear single lens optics

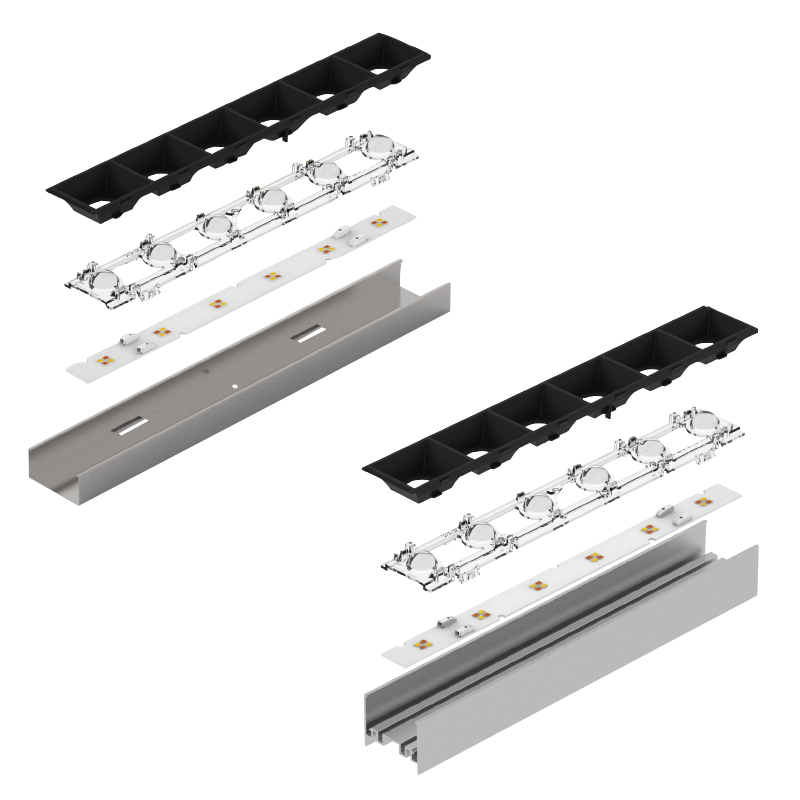

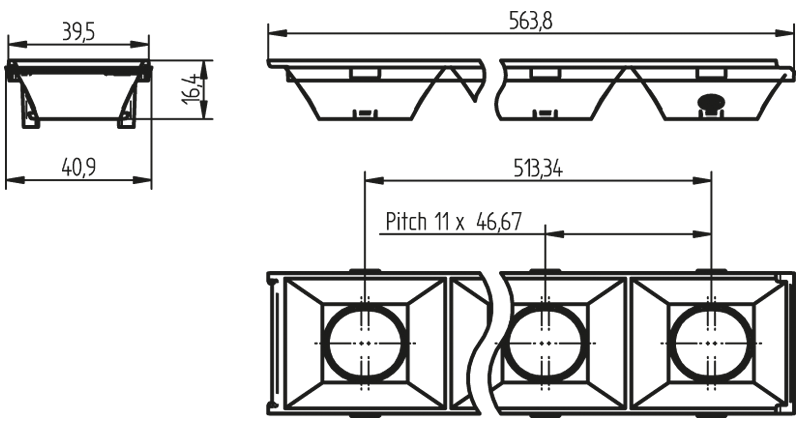

The 35.306 (1ft) optics are designed for use with 35.306.2001 (louvre 1 ft) and 35.312.2001 (louvre 2ft).

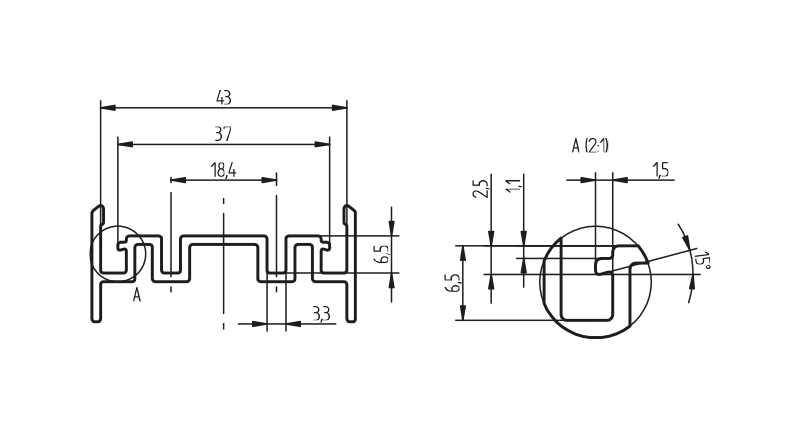

1-Click push-in fixing into metal sheet or aluminiumprofile
For metal sheets: 0.5 - 1.0 mm
• Homogeneous color mixing (also with tunable whiteapplications)
Technical details
• Push-in fixing into metal sheet or aluminium profile
• Centering pins for optimal alignment of opticsand LED module
• Snap-in hooks for fixing LED module and opticsin one step
• Integrated cable holders for wire management
• 2 cables per cable holder possible
• Centering pins for alignment and snap-in hooks forfixing the louvre
Pitch distance 46.67 mm
Area of application:
Applications that require optimal light and minimal glare
Louvre: black

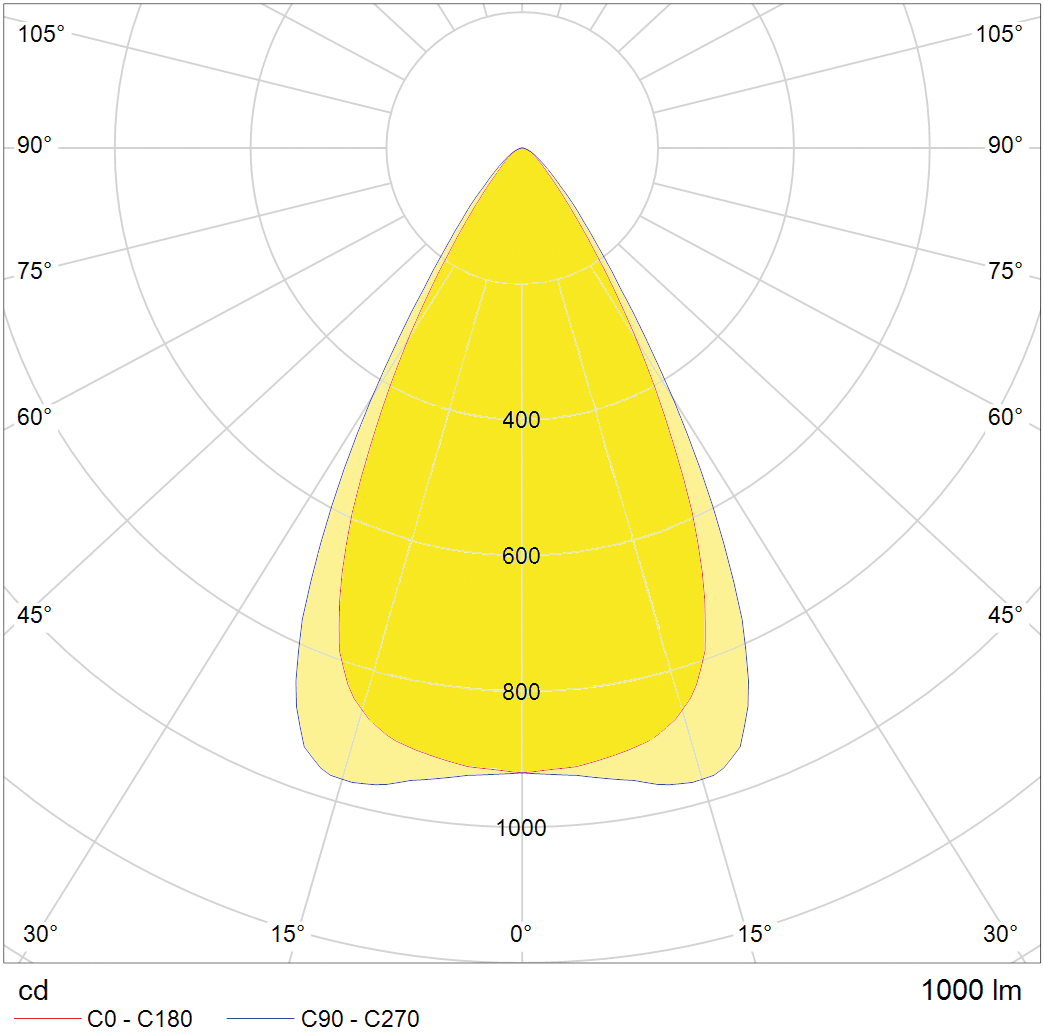

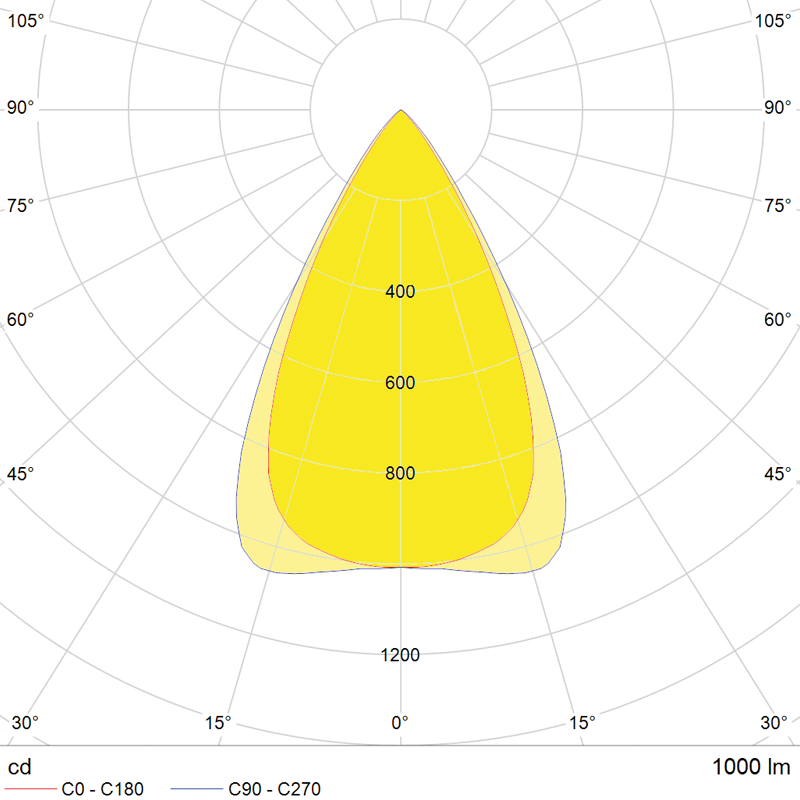

Light distribution: Medium 55°
Efficiency: 74%
Louvre: white
Light distribution: Medium 55°
Efficiency: 87%
measured with Philips Fortimo LED-R
| Application areas: | Applications that require optimal light and minimal glare |
|---|---|
| Color: | clear |
| Height: | 13 mm |
| LED Typ: | Philips Fortimo LED-R |
| Length: | 260 mm |
| Light Distribution: | Medium |
| Material: | PC |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | max. 110 °C |
| Packaging quantity: | 96 |
| Pitch distance: | 46.67 mm |
| Producttype: | OptiLine Louvre - single-row 1-Click optics |
| Series: | OptiLine Louvre Standard Systems |
| Surface outside: | Single lens optics |
| Utilityfilm Link: | https://www.youtube.com/watch?v=1OUwW8IgPaw |
| Weight: | 27,6 g |
| Width: | 40 mm |
| mounting method 1: | Push-in fixing into metal sheet or aluminium profile |
| old article number: | 35.306.1001.85 |
