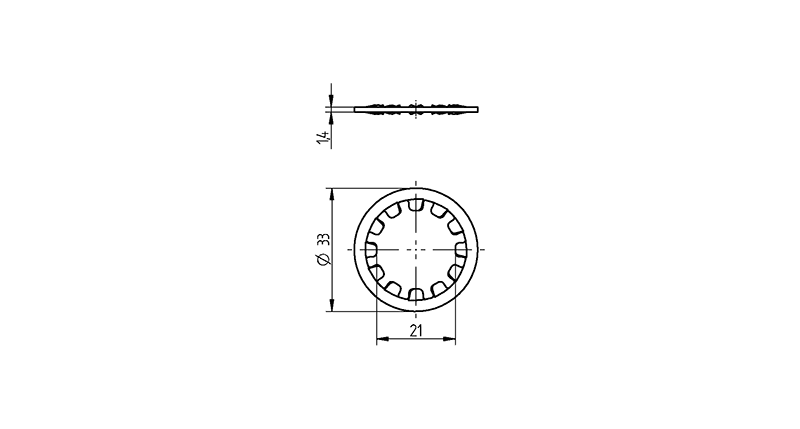

Lock washer ZB 18 M20 for the fixing of the receptacle 47.121
品番:
47.121.E702-1
EAN:
-
-
Zhaga Book 18
-
-40°C to +100°C
製品情報 "Lock washer ZB 18 M20 for the fixing of the receptacle 47.121"
Lock washer for the assembly of the receptacle 47.121.U301
| Ausführung: | according to Zhaga Book 18 |
|---|---|
| Color: | silver |
| Diameter: | 33.0 mm |
| Height: | 1,4 mm |
| IK impact strength grade: | IK09 |
| Material: | Steel zinc plated |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | -40°C up to +100°C |
| Other: | inner diameter 21.0 mm |
| Packaging quantity: | 200 |
| Producttype: | Receptacle - the basis for outdoor light sensors |
| Protection type: | IP 66 |
| Series: | Receptacle - the basis for outdoor light sensors |
| Thread: | M20 x 1.5 mm |
| Utilityfilm Link: | https://www.youtube.com/watch?v=5gH1PGNZ0LI |
| old article number: | 47.121.-702.14 |
