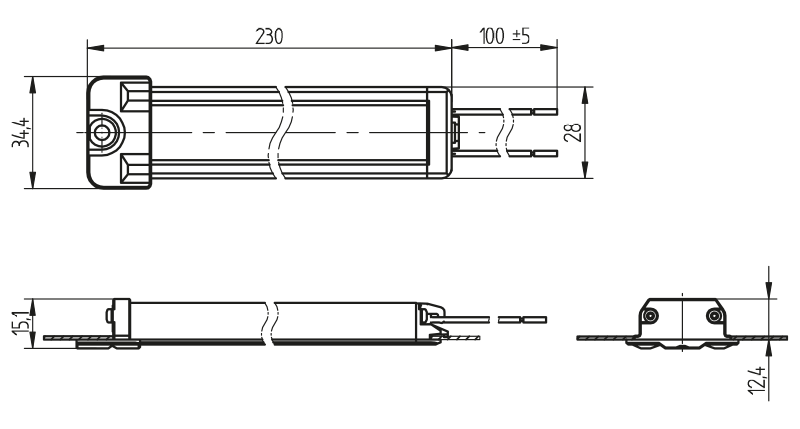

LED ovendoor lamp, Square - 220 x 25 mm, 100 mm wire length
品番:
77.116.1006-0
EAN:
-
製品情報 "LED ovendoor lamp, Square - 220 x 25 mm, 100 mm wire length"
• Easy installation by swivel-screw fixing
• Symmetric light distribution for optimised illumination of the oven muffle
• Variable LED parameters (CCT, CRI, number)
• Protection class III due to operation on SELV voltage
• max. possible current flow of the luminaire is to be most unfavorable operating condition to be determined
• The selection of our products, as well as the technically installationin accordance with the relevant regulations (e.g.IEC 62031 and IEC60335) are the responsibility of the user.
| Application areas: | Professional |
|---|---|
| Ausführung: | not dimmable |
| Colour temperature: | 4.000 K |
| Durability: | Average life span (L70 / B50): 50.000 h (according to BJB test requirements) |
| Efficiency: | 104 lm / W |
| LED?: | yes |
| Lamp: | LED |
| Luminous flux Ta25° C If typical: | 375 lm |
| Material: | Heat sink: Aluminium; End caps: PET; Protective glass: Borosilcate, frosted |
| Max. Temperature at Tc point: | of heat sink: 100° C |
| Mounting cutout: | 220 x 25 mm |
| Note on electrical and optical tolerances: | Tolerances of optical and electrical data: ±10 %. |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating current: | 150 mA |
| Operating mode: | Constant voltage |
| Operating voltage: | 24 V |
| Packaging quantity: | 72 |
| Series: | PROFESSIONAL |
| Suitable for: | Professional oven |
| Thickness: | Material thickness: 0.5 - 1.0 mm mm |
| Weight: | 92 g |
| Wires: | PVC 0.35 mm², 100 mm |
| angle of radiation: | 120° |
| number of LEDs per module: | 14 |
| old article number: | 77.116.1006.36 |
Available CAD Downloads
認証
| 品番 | スターテス | 説明 | 書類 |
|---|---|---|---|
| 77.116.1006-0 | ENEC_Zeichen_--ENEC_Approval_-5772810 |
