LED oven lamp Spot

品番: 77.115.2001-0

EAN: -

0,5 - 1,0

製品情報 "LED oven lamp Spot"

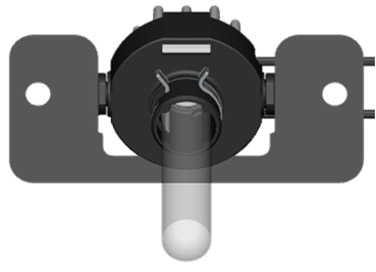

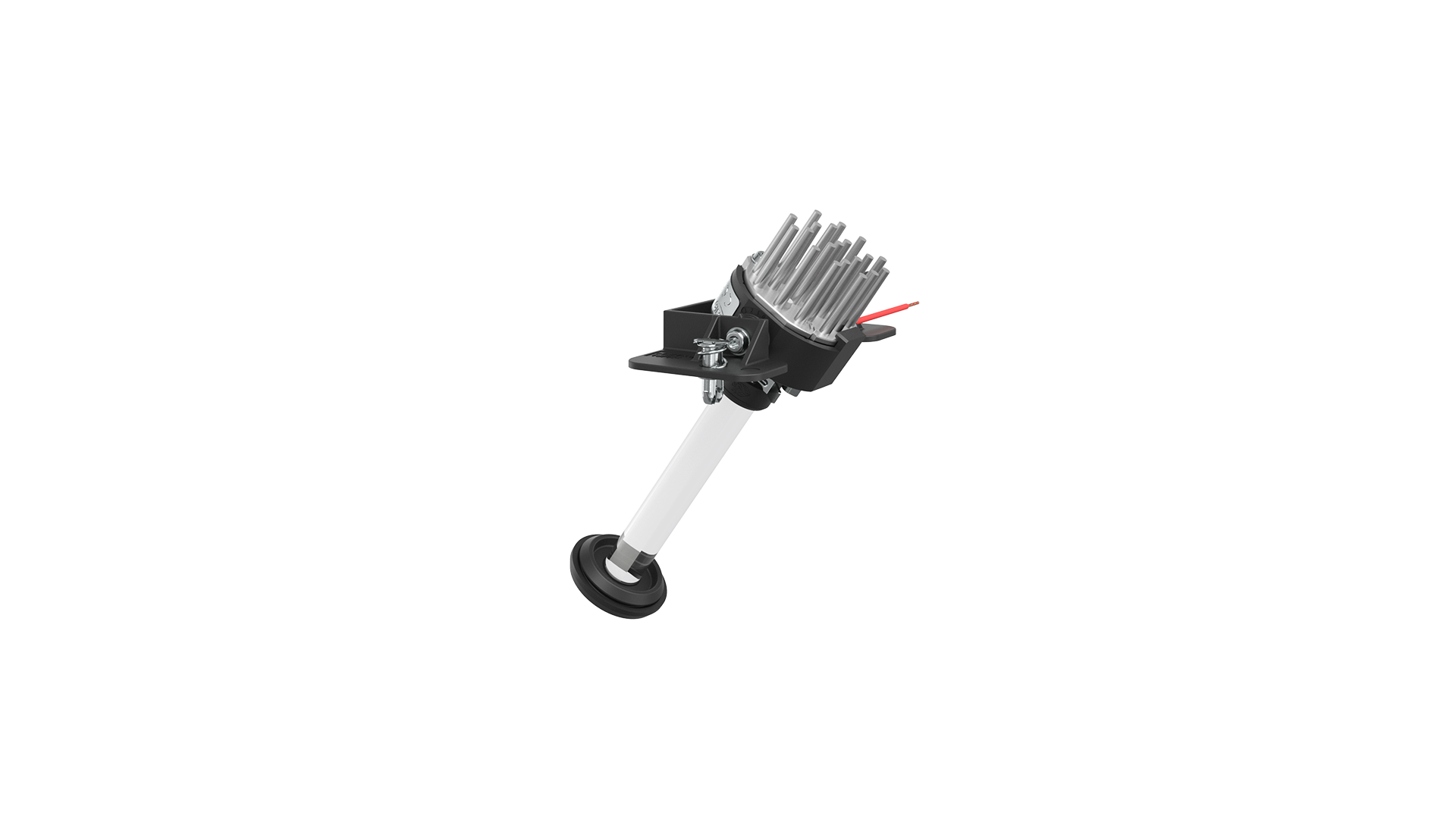

Tiltable LED oven lamp with light conducting glass rod

Symmetrical light characteristic

Screw fixing: for M3 screws
alternatively: push in fixing by using the P2F fixing element 28.905

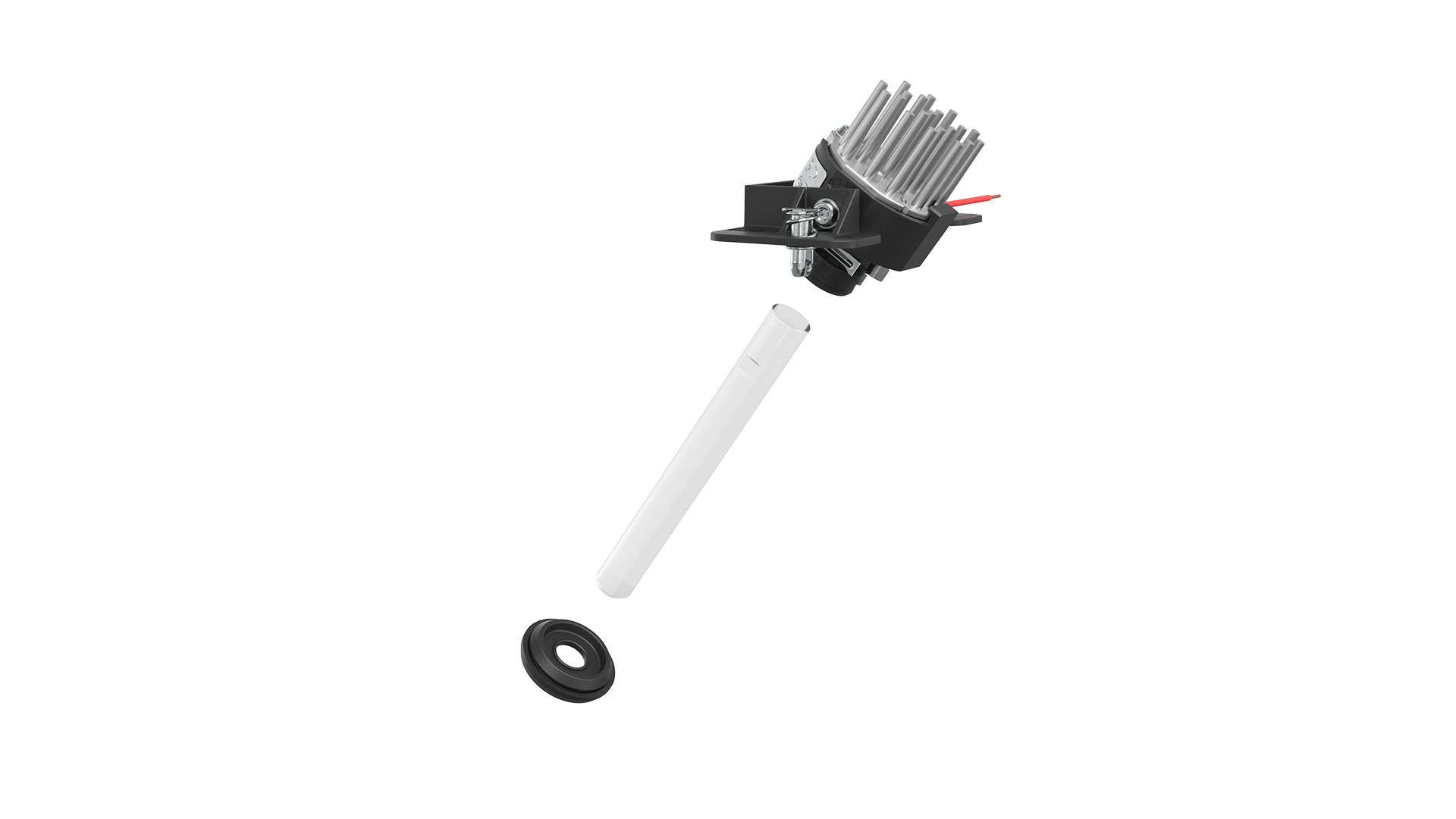

• Due to the variable length of the light conducting glass rod, different installation heights in the oven are possible.
• Variable LED parameters (CCT, CRI, number)
• Protection class III due to operation on SELV voltage
• Max. possible current of the lamp is to be determined in the most unfavorable operating condition
• The choice of our products, as well as the technically correct installation according to the relevant regulations (e.g. IEC 62031 and IEC60335) , are the sole responsibility of the user.

Special versions with higher requirements such as steam tightness, with microwave shielding or pyrolysis suitability on request.

Application areas:	Home + Professional
Ausführung:	Dimmable with suitable control gear
Colour temperature:	3.500 K
Durability:	Average life time (L70 / B50) = 5.000 h (according to BJB test requirements)
LED?:	yes
Lamp:	LED
Luminous flux Ta25° C If typical:	190 lm
Material:	Heat sink: Aluminium, anodized; Housing: PET; Glass light guide rod: Borosilicate glass
Max. Temperature at Tc point:	110° C
Note on electrical and optical tolerances:	Tolerances of optical and electrical data: ±10 %.
Note warranty conditions:	*Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid.
Operating current:	1.000 mA
Operating mode:	Constant current
Other:	Output: 3.0 W - Luminous flux @Ta25° C @ If typical: 190 lm
Output:	3.0 W
Packaging quantity:	54
Producttype:	LED Oven Lamp
Series:	LED
Suitable for:	Combined ovens - Microwaves - Pyro - Steam
number of LEDs per module:	1
old article number:	77.115.2001.00
