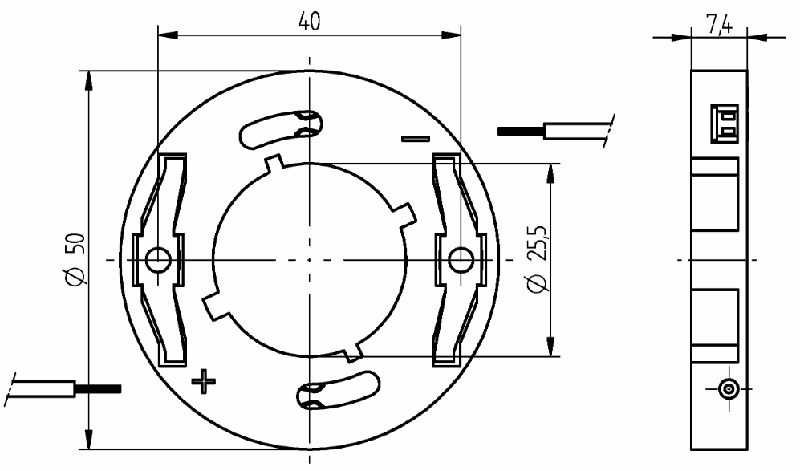

Lampholder GH36d-5 for Twist 'n' Spot/Downlight LED Module
品番:
28.720.1004-0
EAN:
-
-
-
2 connection points
-
0,5 mm²
-
8.0 + 1 mm
製品情報 "Lampholder GH36d-5 for Twist 'n' Spot/Downlight LED Module"

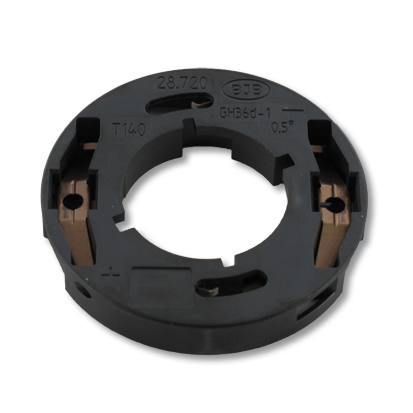

Lampholder for Twist 'n' Spot LED Module
- Housing: sturdy PPS for more durability Power transmission

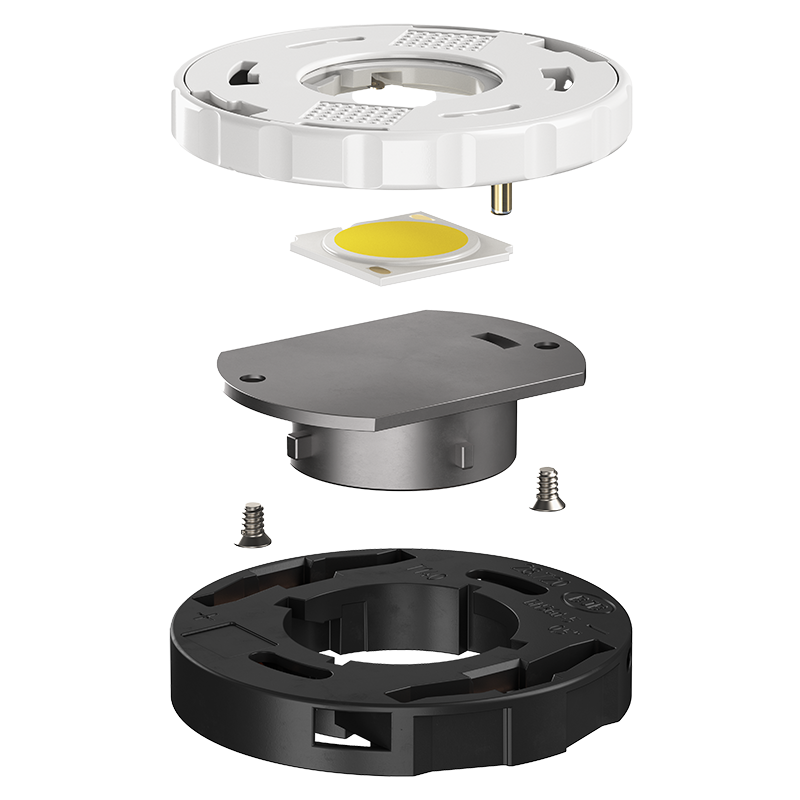

- Twist and Lock System
- Optimum thermal management: CrNi leaf springs ensure permanent contact pressure to the LED module
Please note the polarity of the LED
Please observe the specifications of the LED manufacturer
When connecting LED modules in series, the creepage and clearance distances of the individual modules must be designed for the total voltage of the series connection
| Color: | black |
|---|---|
| Key: | GH36d-5 |
| LED?: | 1 |
| Material: | Housing: PPSMaterial contacts: CuSnLeaf Spring: CrNi |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 240 |
| Producttype: | Lampholders and bases for GH36d LED Light Engines |
| Rated output current: | 2 A |
| Rated voltage: | 150 V |

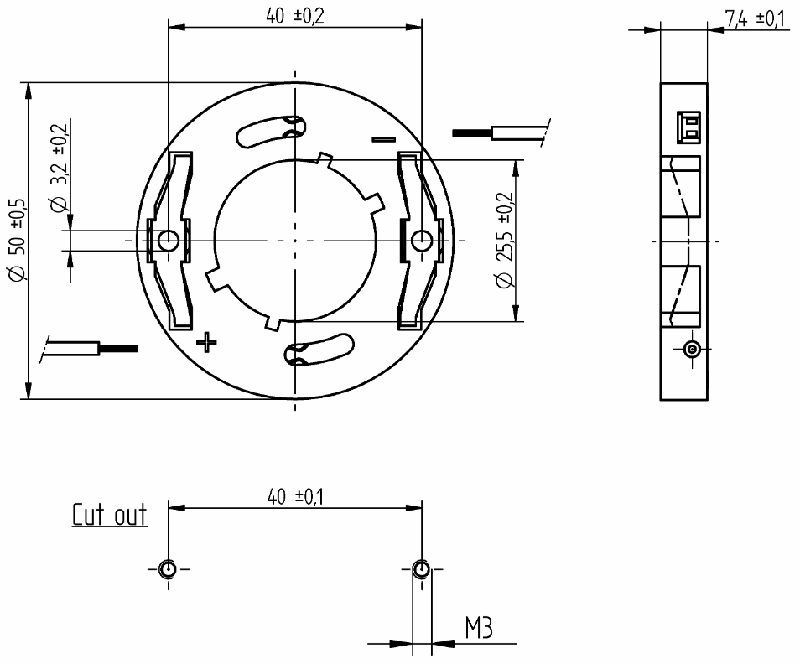

| Screws: | M3 |
| Series: | Lampholders and bases for GH36d LED Light Engines |
| Temperature: | max. 140°C |
| Thread: | max. torque 0,3 Nm |
| mounting method 1: | Screw mount |
| old article number: | 28.720.1004.90 |
Available CAD Downloads
認証
| 品番 | スターテス | 説明 | 書類 |
|---|---|---|---|
| 28.720.1004-0 | EAC_Genehmigung_liegt_vor_--EAC_approval_at_hand_-5665445 | ||
| 28.720.1004-0 | ÜG_Überwachungsgutachten_--Certificate_of_Conformity_-4710759 |
-
-
2 connection points
-
0,5 mm²
-
8.0 + 1 mm
