Lampholder G9
品番:
25.834.1000-0
EAN:
-
-
-
-
-
max. ø 1,8 mm
-
G9
製品情報 "Lampholder G9"
Wires permanently joined after insertion
Requirements of standards, regulations or protection class II are achieved by combination of lampholder with insulating cap.
Requirements of standards, regulations or protection class II are achieved by combination of lampholder with insulating cap.
| Ausführung: | Line Voltage Halogen Lampholder G9 |
|---|---|
| Halogen lamp high-voltage: | G9 |
| Lamp: | for G9 |
| Material: | Housing: Ceramic / LCPContacts: CrNi |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 500 |
| Producttype: | Line Voltage Halogen Lampholder G9 |
| Series: | Line Voltage Halogen Lampholders |
| T-marking: | 250 |
| UL: | yes |
| Weight: | 7 g |
| approbation: | additional cULus |
| cULus file no.: | E-93328 |

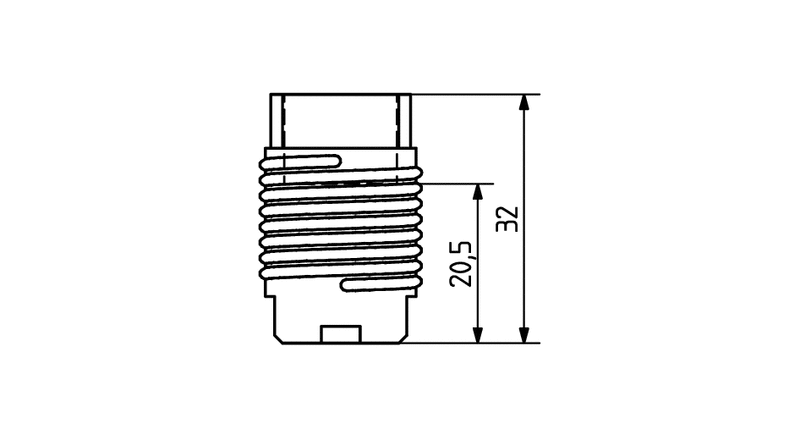

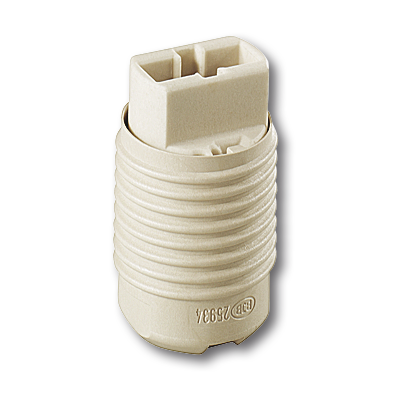

| mounting method 1: | Bayonet mount into adapter or insulating cap 25.934... |
| old article number: | 25.834.1000.00 |
利用可能なダウンロード
Available CAD Downloads
認証
| 品番 | スターテス | 説明 | 書類 |
|---|---|---|---|
| 25.834.1000-0 | IRAM_Genehmigung_liegt_vor_--IRAM_approval_at_hand_-1357669 | ||
| 25.834.1000-0 | PSE-Mark_(Japan)--1367367 | ||
| 25.834.1000-0 | ENEC_Zeichen_--ENEC_Approval_-830579 | ||
| 25.834.1000-0 | CQC_Genehmigung_liegt_vor_--CQC_approval_at_hand_-1472958 | ||
| 25.834.1000-0 | cULus_(USA_and_Canada)--718037 | ||
| 25.834.1000-0 | EAC_Genehmigung_liegt_vor_--EAC_approval_at_hand_-4805042 |
-
-
-
-
max. ø 1,8 mm
-
G9
