G9 Oven lamp Round ø 35,5
品番:
77.208.0069-0
EAN:
-
-
6,3 x 0,8
-
0,6 - 2,5 mm
-
-
G9, 25W, 230V
-
製品情報 "G9 Oven lamp Round ø 35,5"

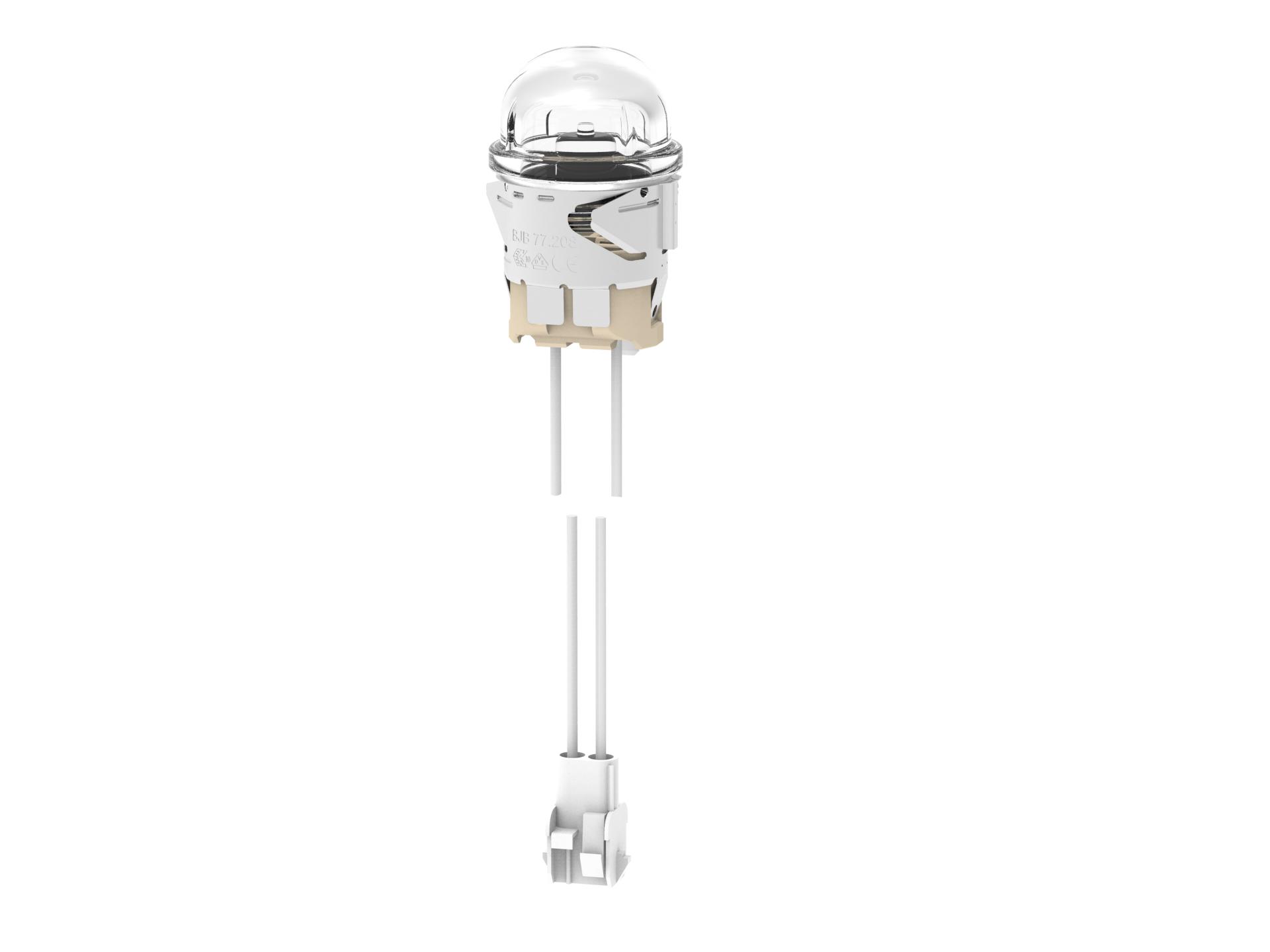

G9 Oven lamp Round ø 35,5
| Application areas: | Home |
|---|---|
| Connector: | tab terminals angled 45° |
| Lamp: | G9, 25W |
| Lens diameter: | 41 mm |
| Mounting cutout: | 35.5 mm |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under www.bjb.com/en/guarantee-conditions are valid. |
| Operating mode: | Constant current |
| Other: | Inserted lamp only for use in oven application |
| Packaging quantity: | 48 |
| Producttype: | G9 Standard Oven Luminaire |
| Series: | Standard |
| Suitable for: | Standard oven |
| UL: | yes |
| old article number: | 77.208.0069.10 |
利用可能なダウンロード
Available CAD Downloads
認証
| 品番 | スターテス | 説明 | 書類 |
|---|---|---|---|
| 77.208.0069-0 | ENEC_Zeichen_--ENEC_Approval_-741008 | ||
| 77.208.0069-0 | cURus_(USA_and_Canada)--703640 |
-
6,3 x 0,8
-
0,6 - 2,5 mm
-
-
G9, 25W, 230V
-
