G4 Oven lamp Steam Square 55x70
品番:
77.707.U102-0
EAN:
-
-
-
-
1,0 - 2,0
-
G4, 20 W, 12 V
-
製品情報 "G4 Oven lamp Steam Square 55x70"
G4 Oven lamp Steam Square 55x70
| Application areas: | Home + Professional |
|---|---|
| Color: | aluminium plated |
| Lamp: | G4, 20 W |
| Material: | Reflector: Steel sheet, Aluminium platedLamp holder: Ceramic |

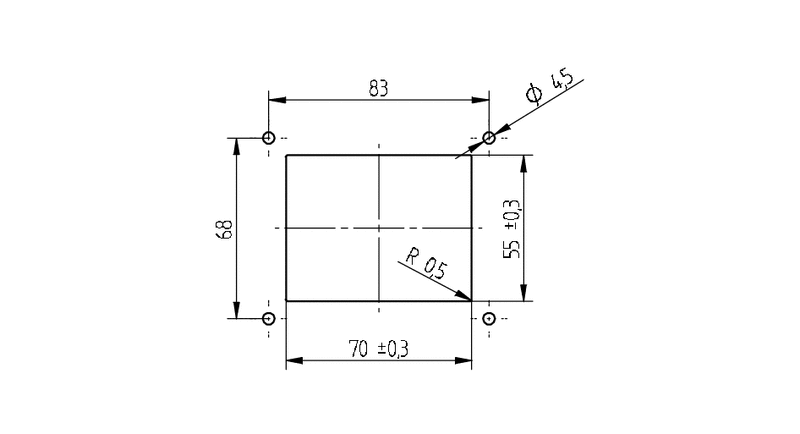

| Mounting cutout: | 55 x 75 mm |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Other: | Inserted lamp only for use in oven application |
| Packaging quantity: | 48 |
| Producttype: | G4 Steam Oven Luminaire |
| ROHS REACH Information: | This product contains the following REACH SVHC substances:Lead in specific copper alloysFor more information, please refer to:https://www.bjb.com/en/Information-RoHS/REACH |
| Series: | Steam |
| Suitable for: | Steam oven |
| Weight: | 23 g |
| mounting method 1: | Snap-in mounting |
| old article number: | 77.707.U102.23 |
