G4 Oven lamp Pyro Square 30x70
品番:
77.935.0119-0
EAN:
-
-
-
-
-
1,0 - 1,6 mm
-
G4, 10W, 12V
-
製品情報 "G4 Oven lamp Pyro Square 30x70"

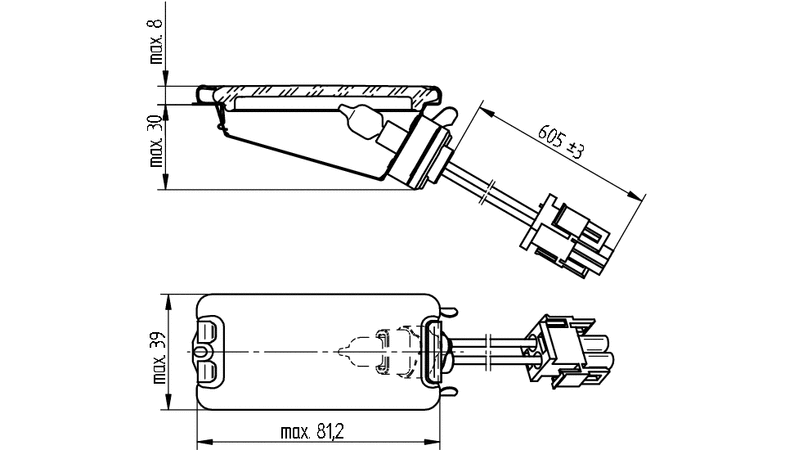

G4 Oven lamp Pyro Square 30x70
| Application areas: | Home |
|---|---|
| Lamp: | G4, 10W |
| Material: | Lens: borosilicate glass 550° CReflector: Steel aluminisedLampholder: Steatite |

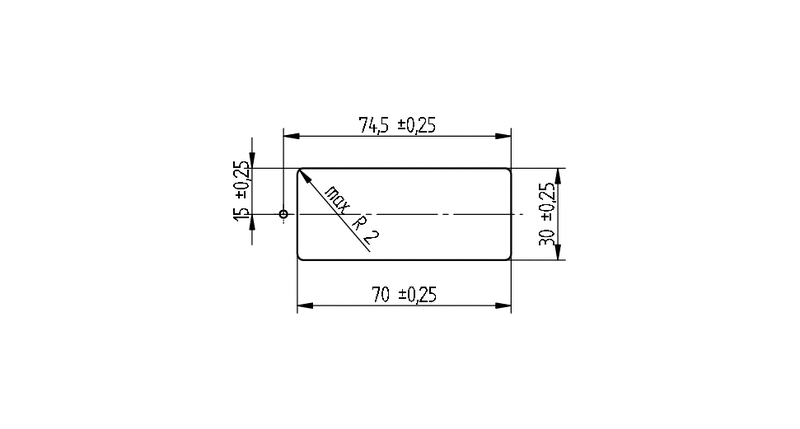

| Mounting cutout: | 30 x 70 |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Other: | Inserted lamp only for use in oven application |
| Packaging quantity: | 160 |
| Producttype: | G9 Pyro Oven Luminaire |
| ROHS REACH Information: | This product contains the following REACH SVHC substances:Lead in specific copper alloysFor more information, please refer to:https://www.bjb.com/en/Information-RoHS/REACH |
| Series: | Pyro |
| Suitable for: | Pyrolytic oven |
| Wires: | 18 AWG, Glass fibre (max. 450° C), Lead length: 600 mm (23'') |
| cURus file no.: | E-93328 |
| mounting method 1: | Screw mount |
| old article number: | 77.935.0119.23 |
