Flat Terminal block 5 poles with REC, snap-in pins LNEZDA+DA- and contact opening function

品番: 46.485.1118-0

EAN: -

0,5 - 1,2
ø 0.5 - 2.5 mm²
max. ø 1,8 mm
ø 1.5 - 2.5 mm²
9 - 10 mm

製品情報 "Flat Terminal block 5 poles with REC, snap-in pins LNEZDA+DA- and contact opening function"

Flat terminal block 5 pole with contact opening function
Upper terminal connection: 0.5 - 2.5 mm²
Direct insertion of solid wire ends and finely stranded wire ends by using the contact opening function
Contact opening function - also for release of already inserted wires

Lower terminal connection:
- 0.5 - 2.5 mm² for solid wire ends
- 1.5 - 2.5 mm2 for rigid and stranded wire ends
- Wire release function by twisting and pulling

Strip length: 9 ±1 mm
Top Test openings
Approvals: ÖVE Reg.
Compliance with creepage distances and clearances (eg according to EN 60598) has to be ensured by the structural design of the luminaire.

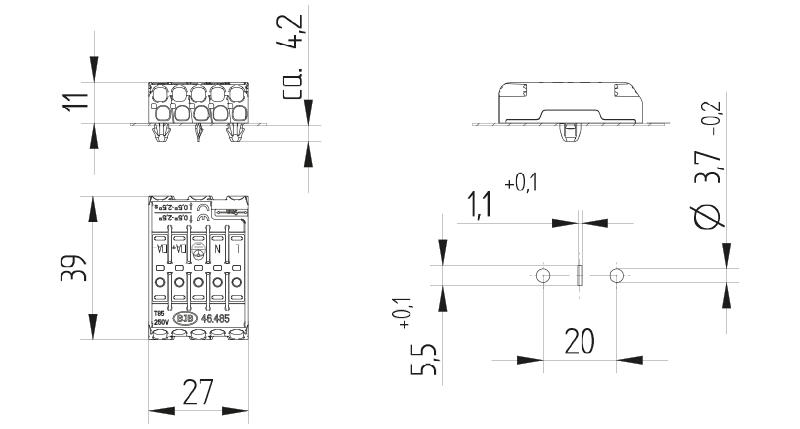

Sheet metall cutout is compatible to 46.415.1115
Product is identical to 46.485.1115, but with different labeling L N EZ DA+ DA-

Contact opening:	With integral cable release
Earth contact :	Rapid Earth Contact
Lettering:	L N ⏚ DA+ DA-
Luminaire wall thickness:	0.5 - 1.2
Material:	Housing: PA, beige, PC, white
Note warranty conditions:	*Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid.
Number of poles:	5
Packaging quantity:	500
Producttype:	Flat terminal block 5 pole
Series:	Flat Terminal Block 5 pole
Weight:	12 g
mounting method 1:	Snap-in pins LNEZDA+DA-
old article number:	46.485.1118.50

利用可能なダウンロード

Available CAD Downloads

3D-CAD_(STEP,_Parasolid,_IGES,_3D-PDF)022-F09-02

認証

品番	スターテス	説明	書類
46.485.1118-0			ENEC_Zeichen_--ENEC_Approval_-6131943
