Counterholder Universal Inline Adpater 0.4 - 1.0mm
品番:
28.701.U301-0
EAN:
-
-
0,4 - 1,0 mm
製品情報 "Counterholder Universal Inline Adpater 0.4 - 1.0mm"
Thermal extension: Axial movement will be compensated
Bolt as guidance block
Release function with spring
Bolt as guidance block
Release function with spring
| Ausführung: | Suitable for use in 3 phase busbar |
|---|---|
| Color: | white |

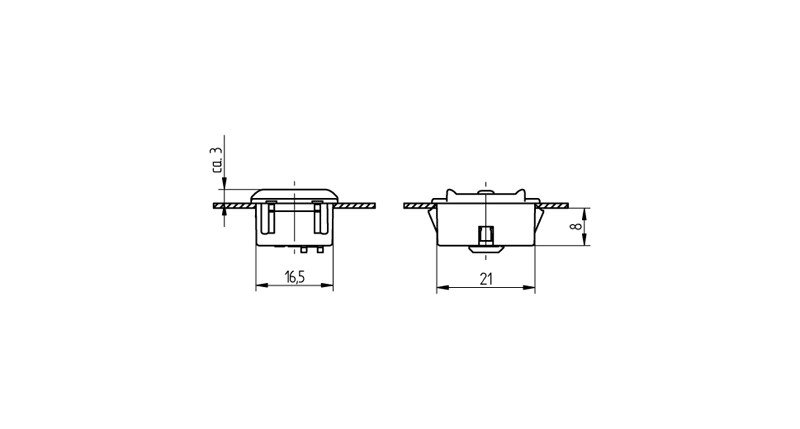

| Luminaire wall thickness: | 0.4 - 1.0 mm |
| Material: | PC |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 100 |

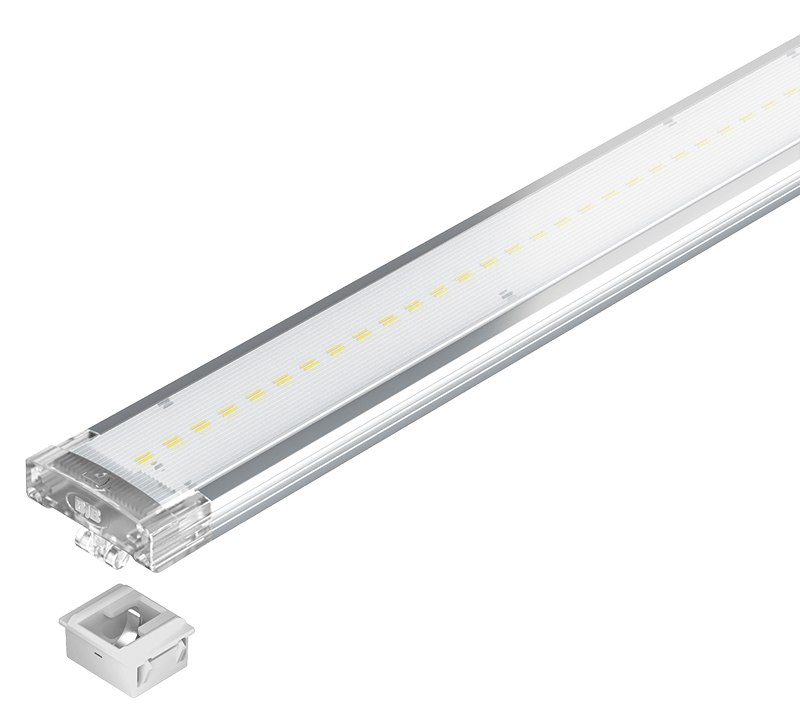

| Producttype: | Lampholders for linear LED Modules (LFS) |
| Series: | Lampholders for Linear LED Modules |
| UL: | yes |
| Weight: | 8 g |
| mounting method 1: | Snap fixing |
| old article number: | 28.701.U301.51 |
Available CAD Downloads
認証
| 品番 | スターテス | 説明 | 書類 |
|---|---|---|---|
| 28.701.U301-0 | EAC_Genehmigung_liegt_vor_--EAC_approval_at_hand_-5665445 | ||
| 28.701.U301-0 | ÜG_Überwachungsgutachten_--Certificate_of_Conformity_-4667472 | ||
| 28.701.U301-0 | cURus_(USA_and_Canada)--3437952 |
-
0,4 - 1,0 mm
