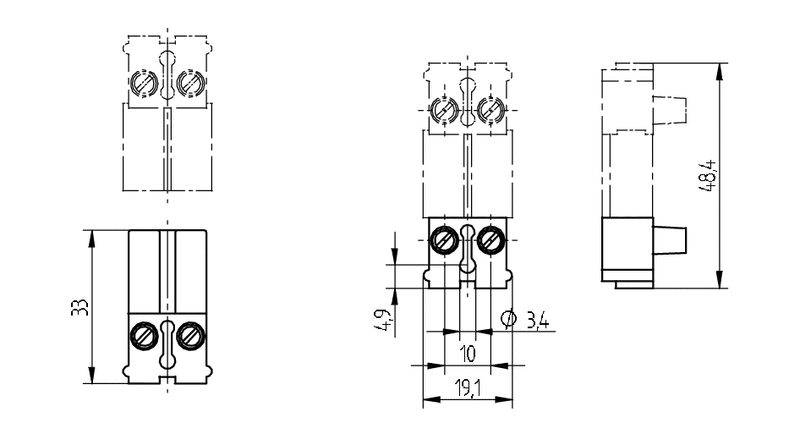

Connector 2 poles
品番:
48.581.8200-0
EAN:
-
-
-
ø 3,4
-
-
製品情報 "Connector 2 poles"
Nominal cross section: 0.5 - 2.5 mm²
Nominal current: 16 A upto ambient temperature Tu = 84° C
Covered contacts
Nominal current: 16 A upto ambient temperature Tu = 84° C
Covered contacts
| Ausführung: | Connecting terminal |
|---|---|
| Color: | natural colour |
| Material: | Housing: PA 6.6 |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Number of poles: | 2 |
| Packaging quantity: | 1000 |
| Plug/socket: | Socket |
| Producttype: | Connecting Terminals |
| ROHS REACH Information: | This product contains the following REACH SVHC substances:Lead in specific copper alloysFor more information, please refer to:https://www.bjb.com/en/Information-RoHS/REACH |
| Screw terminals: | ø 3.4 |
| Series: | Connectors and fused terminal blocks |
| Weight: | 5 g |
| mounting method 1: | Screw mount |
| old article number: | 48.581.8200.51 |
Available CAD Downloads
認証
| 品番 | スターテス | 説明 | 書類 |
|---|---|---|---|
| 48.581.8200-0 | EAC_Genehmigung_liegt_vor_--EAC_approval_at_hand_-4070828 | ||
| 48.581.8200-0 | ÜG_Überwachungsgutachten_--Certificate_of_Conformity_-718314 |
-
-
ø 3,4
-
-
