Compact Rast5 Screw Fix 3-N-ES-1-2 ES terminal block
品番:
46.456.1014-0
EAN:
-
-
-
-
9 - 10 mm
-
ø 0.5 - 2.5 mm²
-
ø 1.5 - 2.5 mm²
-
ø 0.5 - 2.5 mm²
-
-
-
製品情報 "Compact Rast5 Screw Fix 3-N-ES-1-2 ES terminal block"
New family of RAST5 Terminal Blocks with 16mm height, a perfect fit to all standard ECGs
Wire release function on both sides for top connection
Easy to use by push wire contacts
Stranded wires on top connection possible
Multiple earthing possibilities: earthing bracket, rapid earth contact and earthing sign
Different mechanical fixation methods: snap-in pins, pin for aluminum profiles and screw mounting
Different standard markings available, more on demand
| Ausführung: | marking 3 N ⏚ 1 2 and earth symbol |
|---|---|
| Certification Mark: | ENEC11 Certificate License No. 19415-003 |
| Certification Status: | active |
| Conductor cross-section: | 0.5 - 2.5 mm² |
| Connector: | push wire contact |
| Contact opening: | Upper connection: Conductor can be detached using a screwdriver, push and detachable Lower connection: conductor can be released using a release pin, turning and pulling |
| Earth contact : | without, but earth symbol |

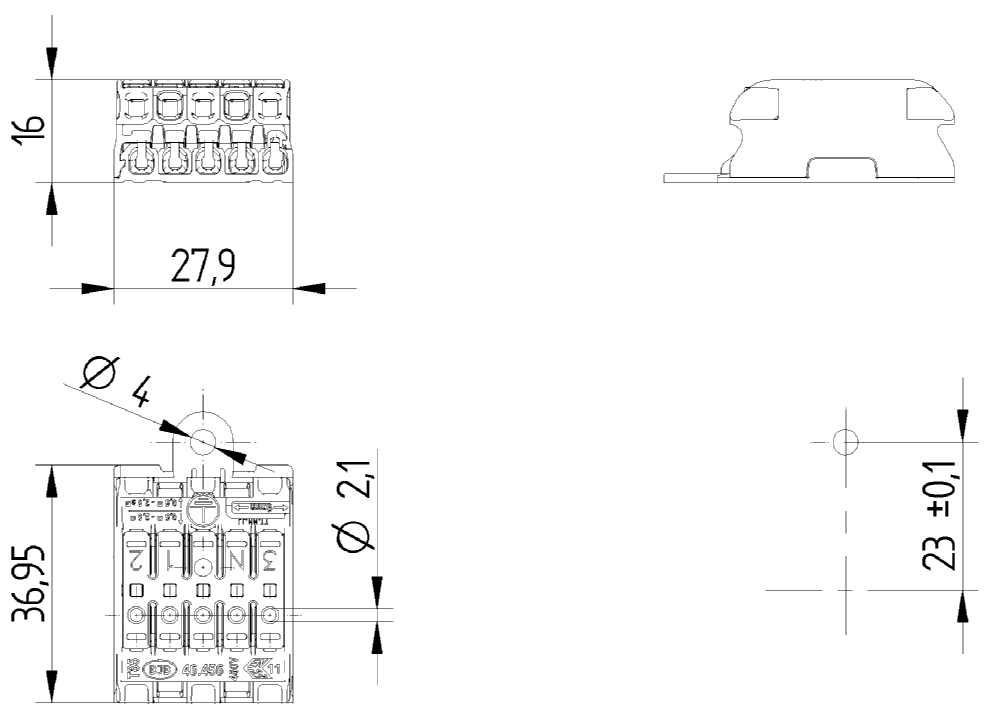

| Height: | 16 mm |
| Length: | 37 mm |
| Lettering: | 3 N ⏚ 1 2 |
| Material: | Housing: PC white and clearContacts: Cu |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Number of poles: | 5 |
| Operating current: | 24A |
| Operating temperature: | -40 °C to 85 °C (at maximum testcurrent of 24 A) |
| Operating voltage: | 450V |
| Other: | Test opening Ø 2.1 |
| Packaging quantity: | 400 |
| Producttype: | Compact Rast 5 terminal block |
| Series: | Compact Rast 5 terminal blocks |
| T-marking: | T85 (IEC) / T105 (UL) |
| UL: | yes |
| Width: | 27,9 mm |
| Wire length: | Stripping length 9 - 10 mm |
| Wiring: | Push wire contact |
| mounting method 1: | Screw mount |
Available CAD Downloads
認証
| 品番 | スターテス | 説明 | 書類 |
|---|---|---|---|
| 46.456.1014-0 | ENEC_Zeichen_--ENEC_Approval_-7066641 | ||
| 46.456.1014-0 | cURus_(USA_and_Canada)--7072587 |
-
-
-
