COB Connector Ø70 LED array 38x38
品番:
47.319.4160-0
EAN:
-
-
-
0,25 - 0,5 mm²
-
0,5 mm²
-
製品情報 "COB Connector Ø70 LED array 38x38"
With integrated reflector interface
Screw mounting: for screws M3 and locking washer
Max. torque for screw fixing 0.5 Nm*
Strip length: 7-1 mm
Polarity of LED must be observed
Specifications of LED manufacturer must be observed
cURus: For limited applications
VDE-Reg. No. E289
*Please note the max torque of the COB manufacturer
Screw mounting: for screws M3 and locking washer
Max. torque for screw fixing 0.5 Nm*
Strip length: 7-1 mm
Polarity of LED must be observed
Specifications of LED manufacturer must be observed
cURus: For limited applications
VDE-Reg. No. E289
*Please note the max torque of the COB manufacturer
| BHC: | CSPM Serie 3838CW |
|---|---|
| Certification Mark: | VDE CERTIFICATE OF CONFORMITY WITH FACTORY SURVEILLANCE EN 60838-1 |
| Conductor cross-section: | 0.5 mm² |
| Country of origin: | DE |

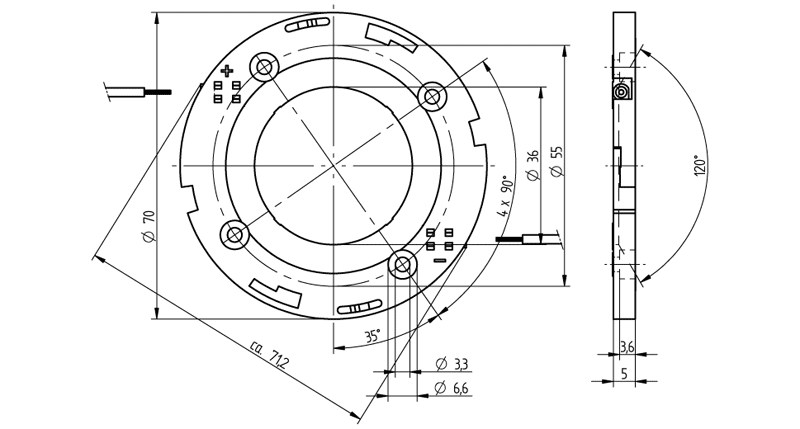

| Diameter: | Ø 70 mm |
| LED?: | intended for the use of COBs |
| LED Array: | 38 x 38 mm |
| Material: | Housing: PBTContacts: CuSn |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | max. 130°C |
| Packaging quantity: | 240 |
| Pre-centering for COB: | Yes |
| Prefixation: | Stranglepins |
| Producttype: | Spotlight Connectors and Accessories |
| Rating: | 3A / 150 VDC |
| Series: | COB Connectors - 47.319 |
| Type of packaging: | Bag |
| UL: | yes |
| Weight: | 7 g |
| cURus file no.: | E-345385 |
| mounting method 1: | Screw mount |
| mounting method 2: | P2F fixing with 28.902.-102 |
| old article number: | 47.319.4160.50 |
Available CAD Downloads
認証
| 品番 | スターテス | 説明 | 書類 |
|---|---|---|---|
| 47.319.4160-0 | EAC_Genehmigung_liegt_vor_--EAC_approval_at_hand_-5665445 | ||
| 47.319.4160-0 | ÜG_Überwachungsgutachten_--Certificate_of_Conformity_-5852779 | ||
| 47.319.4160-0 | cURus_(USA_and_Canada)--3437952 |
以下のタイプの LED に適しています。
| LEDメーカー | LEDの指定 | 詳しくは |
|---|---|---|
| Citizen | CLL050 | ce.citizen.co.jp |
| Citizen | CLU05H | ce.citizen.co.jp |
| Citizen | CLU05Q Serie 9 | ce.citizen.co.jp |
| Citizen | CLU058 | ce.citizen.co.jp |
| Edison | Opto Power III | www.edison-opto.com |
| Itswell | IWC-BH0R2-XX-W1618 | www.itswell.com |
| LUMILEDS | Luxeon 1321 | www.lumileds.com |
| LUMILEDS | Luxeon 1825 | www.lumileds.com |
| Luminus | CXM-32 | www.luminus.com |
| Seoul Semiconductor | ZC100 | www.seoulsemicon.com |
| Sunpu | G9 | www.sunpu-opto.com |
-
-
