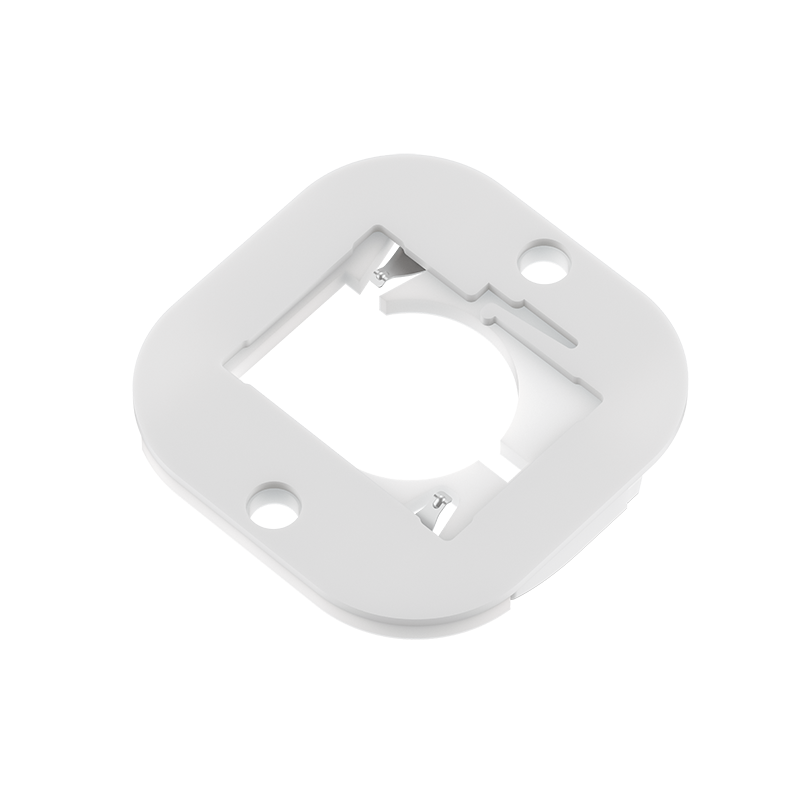

COB Connector FR4 LED Array 14x19
品番:
47.371.1003-0
EAN:
-
-
0.20-0.75 mm²AWG 24-18
-
-
-
0.20-0.75 mm²AWG 24-18
-
0.20-0.75 mm²AWG 24-18
-
8.0 + 1 mm
製品情報 "COB Connector FR4 LED Array 14x19"
Prefixation of the COB

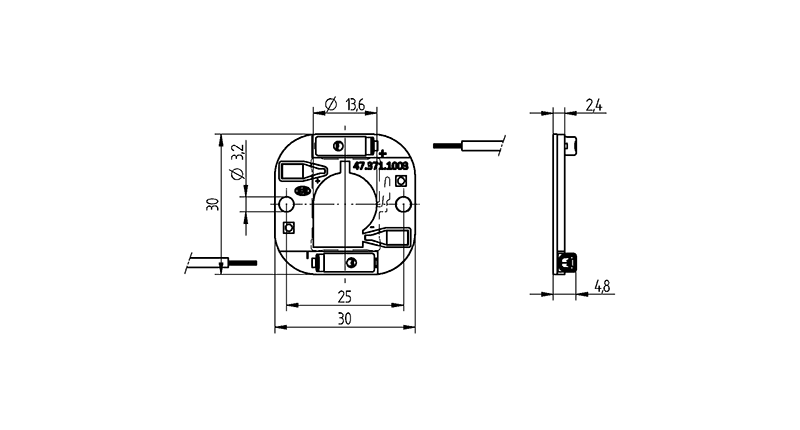

Compact, low overall height: 2.4 mm
Equipped with SMD terminal block 46.131.1001 with wire release function
Integretad internal wiring
High reflective surface correspondin to luminaire design
High flexibiliy - Adaptable to any COB LED
Customised geometry and assembly
Customised reflector interface on request
Assembly with additional electronic components (e.g. DC-DC converter) possible
Compact, low overall height: 2.4 mm
Equipped with SMD terminal block 46.131.1001 with wire release function
Integretad internal wiring
High reflective surface correspondin to luminaire design
High flexibiliy - Adaptable to any COB LED
Customised geometry and assembly
Customised reflector interface on request
Assembly with additional electronic components (e.g. DC-DC converter) possible
| Certification Mark: | VDE CERTIFICATE OF CONFORMITY WITH FACTORY SURVEILLANCE EN 60838-1 |
|---|---|
| Conductor cross-section: | 0.20-0.75 mm² |
| LED?: | intended for the use of COBs |
| LED Array: | 14 x 19 mm |
| Material: | Housing: FR4 - Contacts: CuSn |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | max. 120°C |
| Packaging quantity: | 1 |
| Pre-centering for COB: | Yes |
| Prefixation: | Clamping tab |
| Producttype: | Multiple and Special FR4 Connectors |
| Rating: | 2A / 60 VDC |
| Series: | FR4 Multiple and Special Connectors - 47.371 |
| Stranded, tinned wires: | 0.2-0.5 mm² |
| Suitable for: | COB Dim to Warrm CLC020 from Citizen |
| UL: | no |
| mounting method 1: | Screw mount |
| old article number: | 47.371.1003.00 |
利用可能なダウンロード
Available CAD Downloads
認証
| 品番 | スターテス | 説明 | 書類 |
|---|---|---|---|
| 47.371.1003-0 | ÜG_Überwachungsgutachten_--Certificate_of_Conformity_-5751556 |
以下のタイプの LED に適しています。
| LEDメーカー | LEDの指定 | 詳しくは |
|---|---|---|
| Citizen | CLC020 | ce.citizen.co.jp |
-
