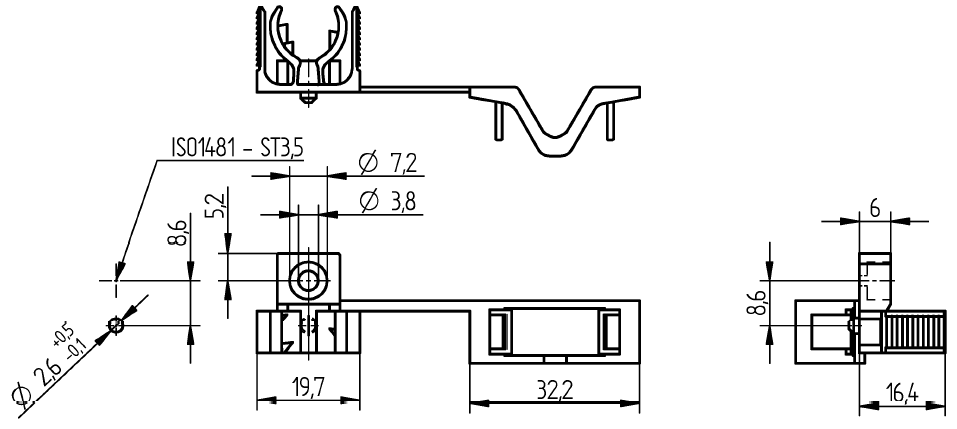

Cable clamp for terminal blocks 46.413 - 46.415
品番:
46.411.E371-0
製品情報 "Cable clamp for terminal blocks 46.413 - 46.415"
Screw mounting: for self-tapping screws
Screw length and screw form must be suitable for the intended application
Suitable for cable with 6 mm - 10 mm dia.
Complies with the requirements of EN 60598 § 5.2.10.1
(maximum total cable cross section 8 mm²)
Screw length and screw form must be suitable for the intended application
Suitable for cable with 6 mm - 10 mm dia.
Complies with the requirements of EN 60598 § 5.2.10.1
(maximum total cable cross section 8 mm²)
| Country of origin: | DE |
|---|---|
| Material: | POM |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 500 |
| Producttype: | Accessories pushwire terminals |
| Series: | Pushwire terminals |
| Train unloaders: | for terminal blocks 46.413 - 46.415 |
| Weight: | 3 g |
| mounting method 1: | Screw mount |
| old article number: | 46.411.-371.50 |
